【廣州蘭瑟電子科技】一級代理全球提供德國Balluff巴魯夫BAW M12MP-UAZ50B-BV03-510位移傳感器6折折扣價格,服務熱線：020-22157650；專業負責中國市場BAW BAW M12MP-UAZ50B-BV03-510位移傳感器售前售后服務。
想了解更多產品信息請點擊：德國Balluff位移傳感器，找專業工程師楊帆為您服務
產品名稱：德國巴魯夫Balluff BAW M12MP-UAZ50B-BV03-510位移傳感器
英文品牌：德國Balluff位移傳感器
中文品牌：德國巴魯夫位移傳感器
產品價格：批發價，一只以上屬于混批
訂購熱線：020-22157650
Keyfeatures
|
Size
|
M12
|
|
Connection
|
Cable, 3m, PVC
|
|
Linearity range Sl
|
1...5 mm
|
|
Output voltage at Sl min.
|
0 V
|
|
Output voltage at Sl max.
|
10 V
|
General attributes
|
Ready delay tv max.
|
5 ms
|
|
Utilisation category
|
DC 13
|
|
Switching freq. f max.
|
750 Hz
|
|
Mechanical installation condition
|
Quasi embeddable
|
|
Power indicator
|
No
|
|
Basic standard
|
BWN PR 44, IEC 60947-5-2, IEC 60947-5-7
|
|
Short-circuit protected
|
No
|
|
Enclosure Type per IEC 60529
|
IP67
|
|
Protected against polarity reversal
|
Yes
|
|
Protected against miswiring
|
No
|
|
Additional text
|
Values referenced to axial approach of an EC 80 target. For other materials correction factors are applied.
Total of all output currents may not exceed 80 mA.
The product BAW M12MP-UAZ50B-BV-..-510 is an inductive proximity sensor with analog output and is subject to EN 60947-5-7. The additional binary outputs D0, D1, D2, D3 have a measured value receiving and information processing function. This means that these outputs are a representation of the analog output measure and, see also EN 60947-5-2 Table 7 / Line 3.
|
|
Series
|
M12
|
|
Special properties
|
Digital Interface
|
Electrical attributes
|
Connection type
|
Cable
|
|
Rated operating voltage Ue DC
|
24
|
|
Effective operating current Ie
|
20 mA
|
|
Rated frequency, AC
|
DC
|
|
Rated insulation voltage Ui
|
75 DC
|
|
Electrical version
|
DC, direct current
|
|
Load capacitance max. (at Ue)
|
0,1 F
|
|
Off-state current Ir max.
|
10 A
|
|
Ripple max. (% of Ue)
|
15
|
|
Switching output
|
PNP / Analog+NO
|
|
Switching function
|
Voltage falling on approach
|
|
Voltage drop static max.
|
1 V
|
|
Principle of operation
|
Inductive
|
|
Limit frequency -3dB
|
500 Hz
|
|
Output voltage at Se
|
5 V
|
|
Slope U
|
2,5 V/mm
|
|
Non-linearity max.
|
±160 洀
|
|
No-load current max. Io at Ue
|
20 mA
|
|
Operating voltage
|
21,6...26,4 V DC
|
Mechanical attributes
|
Number of conductors
|
8
|
|
Tightening torque
|
10 Nm / 15 Nm
|
|
Cable short designation
|
LiYY-O
|
|
Cable length
|
3 m
|
|
Conductor cross-section
|
0.14 mm
|
|
Oberfl挀梔攀渀猀挀梔甀琀稀
|
Nickel-plated
|
|
Shock rating
|
Shock, half-sinus, 30 gn, 11ms
|
|
Vibration rating
|
55 Hz, 1 mm ampl., 3x30 min
|
|
Ambient temperature Ta min.
|
-10 °C
|
|
Ambient temperature Ta max.
|
70 °C
|
|
Degree of contamination
|
3
|
|
Sensing surface material
|
LCP
|
|
Housing material
|
Brass
|
|
Cable jacket material
|
PVC
|
|
Cable diameter D max.
|
5
|
|
Response time
|
2 ms
|
|
Measuring speed max.
|
5 m/s
|
|
Optical operating temperature min.
|
10 °C
|
|
Optical operating temperature max.
|
50 °C
|
|
Max. temp. drift from end value
|
±5.0 %
|
|
Temperature coefficient min.
|
0.0 洀/K
|
|
Temperature coefficient max.
|
5.0 洀/K
|
|
Temperature coefficient typ.
|
-1.5 洀/K
|
|
Repeat accuracy per BWN
|
±8.0 洀
|
|
Adjustment indicator
|
No
|
|
Repeat acc. R of end value max.
|
3
|
|
Rated operating dist. Se
|
3 mm
|

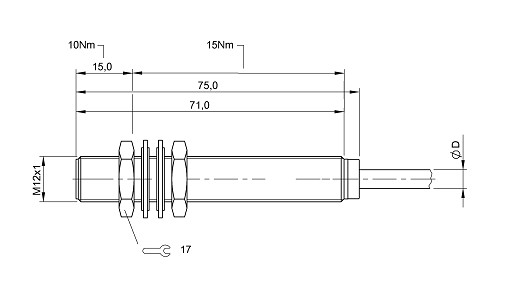

BAW M12MP-UAZ50B-BV03-510位移傳感器尺寸圖
