BF2稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器獲取最新報價！！！
產品品牌：英國LCMsystems（LOADCELL）
產品類別：不銹鋼懸臂梁式
產品系列：LCM低量程BF2系列稱重傳感器
產品型號：BF2-2kg,BF2-5kg,BF2-10kg,BF2-30kg,BF2-50kg
英國LCMsystems BF2稱重傳感器特點
▲范圍2kgf至50Kgf
▲小的物理尺寸
▲1000ohm橋電阻
▲不銹鋼結構
產品描述：The LCM Systems range of Pioden Transducers has been widely used for many years.
The BF2 is constructed from stainless steel and is available in ranges between 2kg and 50kg.
The BF2 offers an excellent size/performance ratio, at a competitive price. The stainless steel dual cantilever design enables the rejection of off-centre forces, making the first choice in a number of material testing and weighing applications.
英國LCMsystems BF2稱重傳感器技術指標
|
Range (FSO)
|
2, 5, 10, 30, 50kg
|
|
Maximum Overload Range
|
200% with <±1% calibration shift
|
|
Output Sensitivity
|
2mV/V nominally
|
|
Zero Offset
|
<±2% FSO
|
|
Accuracy
|
<±0.1% FSO
|
|
Repeatability
|
<±0.1% FSO
|
|
Excitation Voltage
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance
|
1000Ω standard
|
|
Insulation Resistance:
|
>1000MΩ at 250vdc
|
|
Operating Temperature Range
|
-20°C to +70°C
|
|
Compensated Temperature Range
|
+10°C to +60°C
|
|
Zero Temperature Coefficient
|
<±0.03% FSO/°C (<±0.01% FSO/°C optional)
|
|
Span Temperature Coefficient
|
<±0.03% FSO/°C (<±0.01% FSO/°C optional)
|
|
Environmental Protection Level
|
IP65
|
|
Connection Type
|
2 metres 4-core screened PVC cable
|
|
Wiring Connections:
|
|
+ve supply Red
|
-ve supply Blue
|
|
+ve signal Green
|
-ve signal Yellow
|
|
|
Options Available:
|
Consult Factory - Many Options and special versions available
|

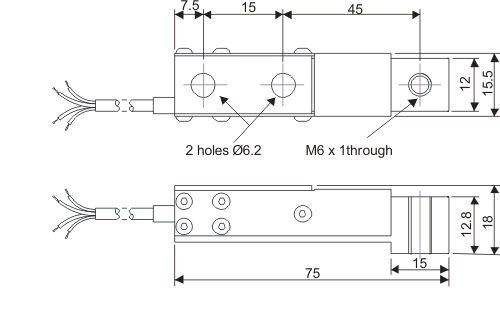

英國LCMsystems BF2稱重傳感器規格尺寸
Ranges 2kgf to 50kgf
Small Physical Size
1000ohm bridge resistance
Stainless Steel Construction
英國LCM的系統范圍Pioden變換器已經被廣泛使用了很多年。
該BF2是由不銹鋼制成，可在2千克，50公斤之間的范圍。
該BF2提供了一個極好的尺寸/性能比，以具有競爭力的價格。不銹鋼雙懸臂式設計，使偏離中心勢力的排斥，使得首選在大量的材料測試和稱重應用。
|
